- Vacuum controlled 3 Way Valves apply signal pressure to a diaphragm that is opposed by a spring force. When then vacuum signal force is greater (deeper vacuum = more force) than the spring force it reaches its set-point (also called “On” pressure), the internal mechanism moves and changes the pneumatic state.
- The signal pressure and pneumatic circuit are completely isolated from each other.
- The pneumatic circuit is normally open, which means the supply port is open to the output port.
- When the valve trips, the supply is shut off and the output port is vented through the exhaust to atmosphere. There is no connection available on the exhaust port. The valve will remain in this state until the pressure signal drops below its reset point (also called “Off” pressure).
- The difference between the “On” pressure and the “Off” pressure is defined as the Differential or Hysteresis of the valve.
- Factory preset options are available. Please contact your salesperson or distributor for specifications and a custom part number.

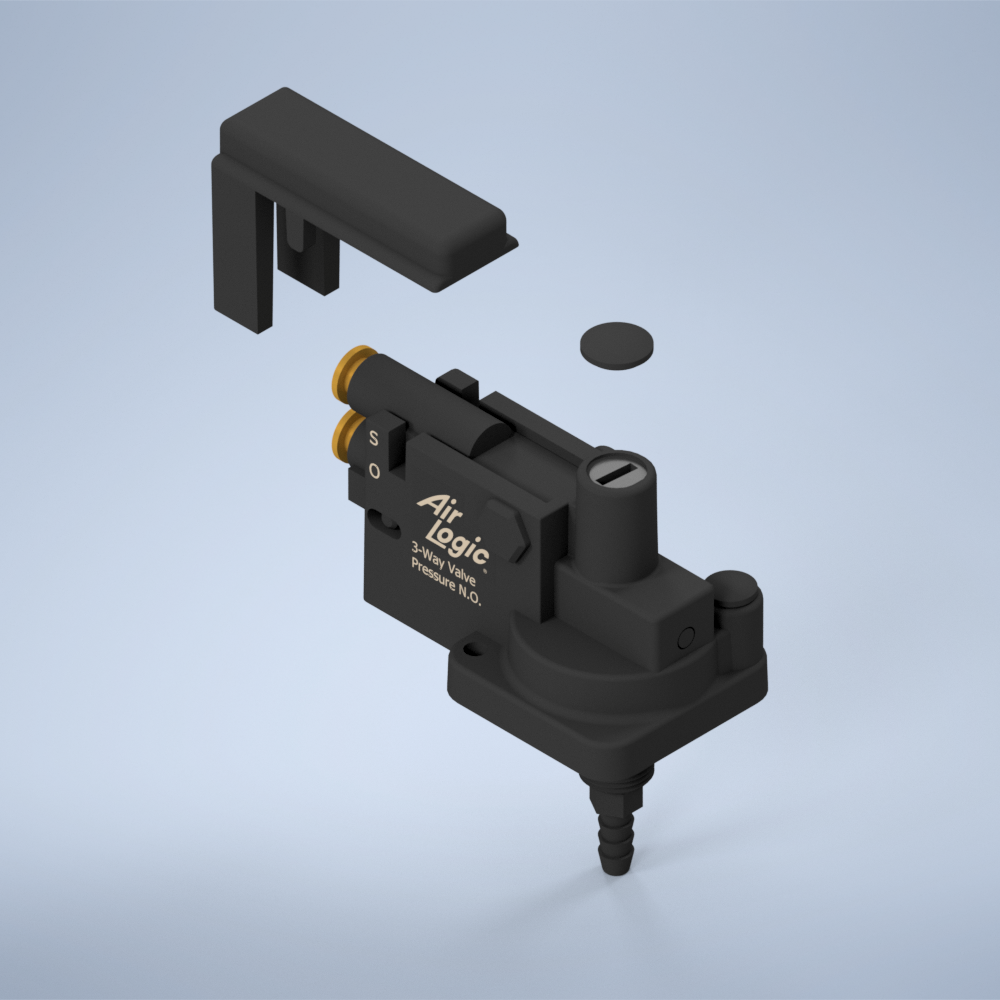

- Adjustments can be made to the switch by removing the round cover and turning the flat head screw. Clockwise adjustments will raise the Set point. Counter clockwise adjustments will lower the setpoint (on pressure). Adjusting preset 3-way valves is not recommended. Do not back out the flat head screw above flush with the body.
Unit of Measure
Specifications
Model |
N/A F-5700 |
Switch Selection |
N/A Normally Open - Senses Pressure/Turns Output OFF |
Sensing Range |
N/A 0.5 to 100 PSI |
Mounting Style |
N/A Panel Mount 1/8-27 NPS |
Port Connection |
N/A Barb for 1/8" I.D. Tubing |
Features |
N/A
|
Materials |
N/A
Housing: Polysulfone Diaphragm: Polyurethane Spring: Stainless Steel or Music Wire |
Air Consumption at 6 bar |
N/A .7 l/min |
Nominal Orifice Size |
N/A 2 mm |
Fittings |
N/A 4 mm Push to Connect |
Pressure Range |
N/A 1.5 bar - 8 bar |
Wetted Material(s) |
N/A Buna and Nylon |
