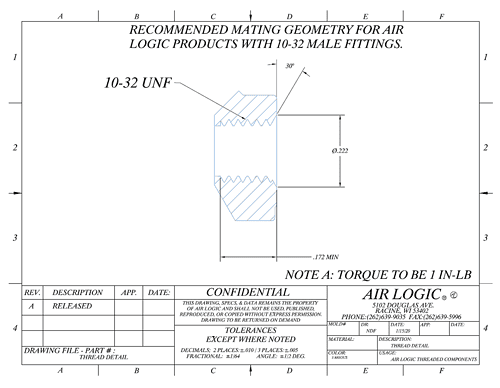

Please reference the dimensions and tolerances below. This information is applicable for all Air Logic products with 10-32 UNF threads.
Air Logic products that include this type of thread are:
- Directional Flow Control Valves
- Threaded Orifices
- Barb to Thread Filtered Adaptor
- Threaded Inline Air Filter
- Threaded Floating Disk Check Valves
- Normally Closed Check Valves
- Swivel Fittings with Integrated Base Seal
- Swivel Fittings with O-Ring Base Seal
- Static Fittings
